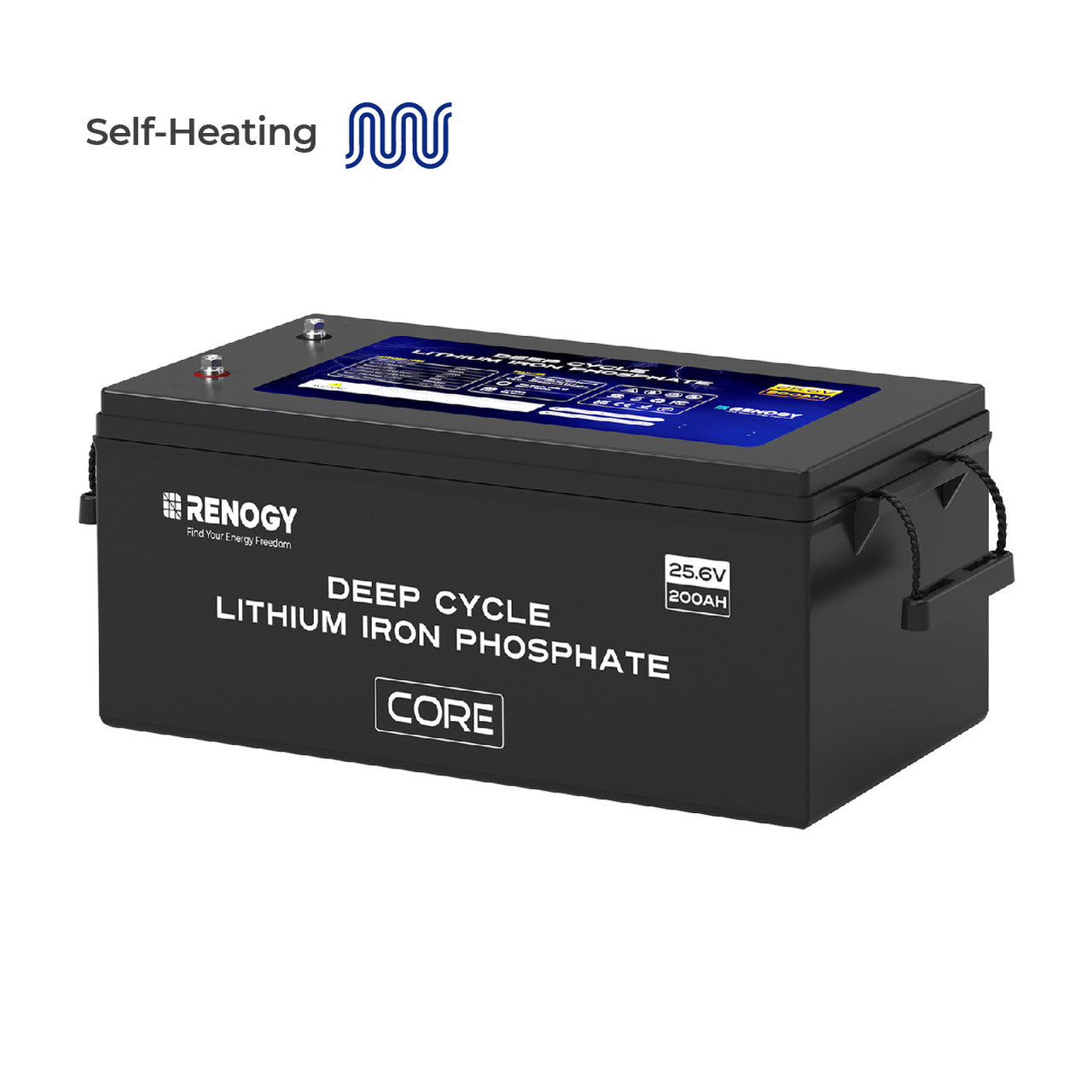

Renogy 24V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

Renogy 24V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

£1,199.99 GBP
£1,199.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Renogy offers a lightweight 24V solution with more juice and faster charging, allowing you to effortlessly stay on the water all day.

-Intelligent 2x faster self-heating.
-Light EV-class cells (Grade A) with a 15-year lifespan.
-Low-temperature cut-off for maximized battery lifespan.
-Built-in BMS & IP65-rated.
-Support series (Up to 2S), parallel (Up to 4P), or series-parallel
The Specs
24V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
Electrical Specifications

Rated Capacity: 200Ah

Nominal Voltage: 25.6V

Energy: 5120Wh

Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Connection Method: Series & Parallel (2S4P)

Self-Heating: Yes

Temperature Parameters

Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C)

Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: -13°F to 149°F / -25°C to 65°C

Operation Relative Humidity: 10% to 95%

Charging Parameters

Charge Voltage: 29.0V

Maximum Continuous Charge Current: 200A

Discharging Parameters

Maximum Continuous Discharge Current: 200A

Peak Discharge Current: 390A@5s

Mechanical Specifications

Dimension (L x W x H): 20.55 x 10.55 x 8.62 in / 522 x 268 x 219 mm

Weight: 88.6 lbs. / 40.2 kg

Terminal Bolt Size: M8 x 1.25 x 15 mm

Protection Rating: IP65

Housing Material: ABS

Warranty

Material and Workmanship Warranty: 5-Year Material Warranty

Certifications: MSDS, UN38.3, FCC, CE, PSE, and UKCA
