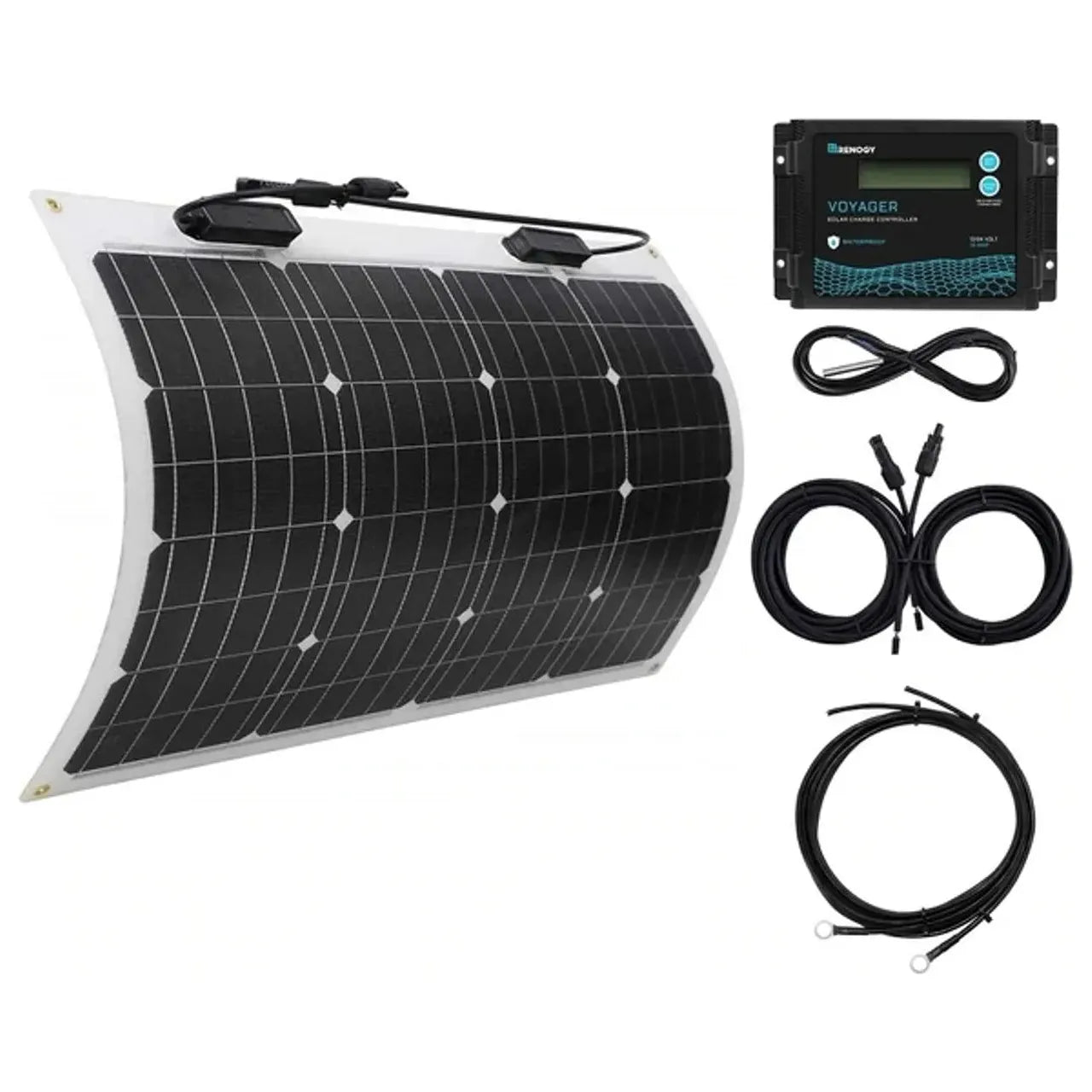

Renogy 50 WATT 12 VOLT SOLAR MARINE KIT

Renogy’s Marine Kits are back and better than ever! Adding solar to your boat is a breeze since we've included the necessary components to get you started on your solar quest to eliminate the burden of dead batteries and maximize your fun under the sun. Unlike traditional gas-generators, Renogy’s Marine Kits will silently charge your batteries and ensure they’re topped off just right. Included in the kit is our new waterproof 10A Voyager Charge Controller capable of handling up to 7 different battery types! If weight is a concern for your boat, have no fear! Our new 100W Flexible panels are thin, lightweight and take up minimal space.

Key Features

Solar Panel

• Designed for off-grid solar panel system, caravan, RV, boat, Green house solar panel system
• Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
• Waterproof charge controller giving you more freedom to install anywhere
• With a flex range of up to 248 degrees, this panel can meet a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an Airstream

Charge Controller

• 12V / 24V Battery Compatibility with Auto Recognition
• Smart 4 Stage PWM charge controller: Bulk, Absorption. Float, and Equalization
• 4 Battery Type Compatiblity – Sealed/AGM, Gel, Flooded, and Lithium batteries (with Lithium Awakening feature)
• Watertight design with Backlit LCD display for system information and error codes
• Multiple protection features for battery, controller, and solar panels (including reverse polarity and more)

Flexible 50 Watt Solar Panel	10A PWM Waterproof Charge Controller
Maximum Power at STC*: 50 W	Nominal Voltage: 12/24 VDC
Optimum Operating Voltage (Vmp): 18.5V	Rated Charge Current: 10A
Optimum Operating Current (Imp): 2.71A	Max. PV Input Voltage: 55V
Short-Circuit Current (Isc): 2.92A	Max. PV Power: 130W (12V) / 260W (24V)
Open Circuit Voltage (Voc): 22.6V	Enclosure: IP67
Operating Temperature: -40°F to 185°F / -40°C to 85°C	Self-consumption: 0.22W (12V) / 0.72W (24V)
Weight: 2.87lb (1.3kg)	Weight: 0.55 lbs / 0.25kg
Dimensions: 26.5x20.0x0.16 in (673 x 508 x 4 mm)	Dimensions: 6.1 x 3.8 x 1.4 in / 15.4 x 9.7 x 3.5 cm

8ft 10AWG Tray Cables (A Pair)	20ft 12AWG MC4 Adaptor Kit (A Pair)
Length: 8ft	Length: 20ft
AWG: 10	AWG: 10
Rating Voltage: 600/1000V	Rating Voltage: 600/1000V
Temperature: -40°F to +185°F	Temperature: -40°F to +185°F

Temperature Sensor
Cable: 22AWG, 2-Pin Conductor	Cable Length: 9.8 ft/ 3M

Warranty Information



Panels	25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty
Accessories	1-year material warranty



Certification
