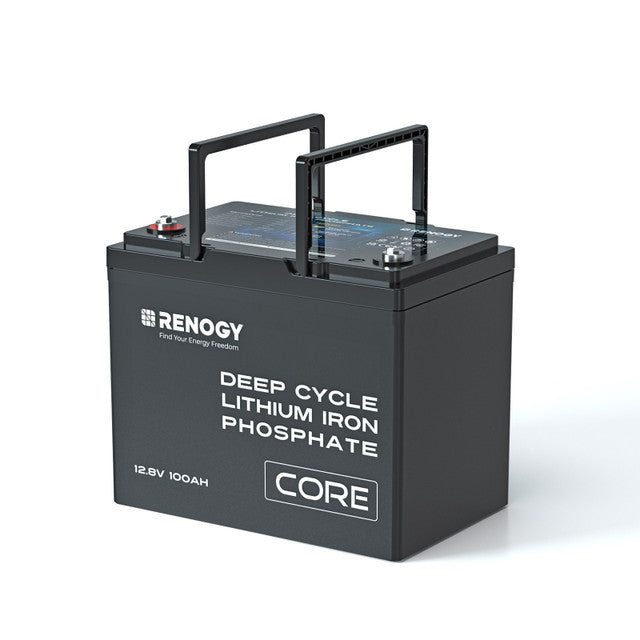

Renogy CORE 12V 100A Lithium Iron Phosphate Battery

Meet Renogy 12V 100Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without compatibility issues. With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer. Off-grid living can be challenging, but the Renogy 12V 100Ah Core Battery offers a true 100A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles. Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 100Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

• -Delivers up to 6% more power than rated capacity for optimized performance.
• -Provides 300A for 10 seconds, starting heavy loads efficiently.
• -Supports series, parallel, or both connections for flexibility.
• -Equipped with a 100A BMS and low-temp cut-off for superior safety.
• -Includes a 5-year warranty and 24-hour support for peace of mind.

Rated Capacity (0.5C, 25°C): 100AH

Nominal Voltage: 12.8V

Energy: 1280Wh

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charge Temperature: Charge: 32°F to 131°F / 0°C to 55°C

Discharge Temperature: Discharge: -4°F to 140°F / -20°C to 60°C

Storage Temperature Range: -13°F to 149°F / -25°C to 65°C

Operation Relative Humidity: 10% to 95%

Dimension (L x W x H): 10.24 x 6.65 x 8.31 in / 260 x 169 x 211 mm

Weight: 23.15 lbs. / 10.5 kg

Terminal Bolt Size: M8 x 1.25 x 15 mm

Protection Rating: IP65

Charge Voltage: 14.4V

Maximum Continuous Charge Current: 100A

Maximum Continuous Discharge Current: 100A

Peak Discharge Current: 300A@10s

MSDS, UN38.3, FCC, PSE, CE, UKCA, IEC62619: YES

Warranty: 5-year material warranty
