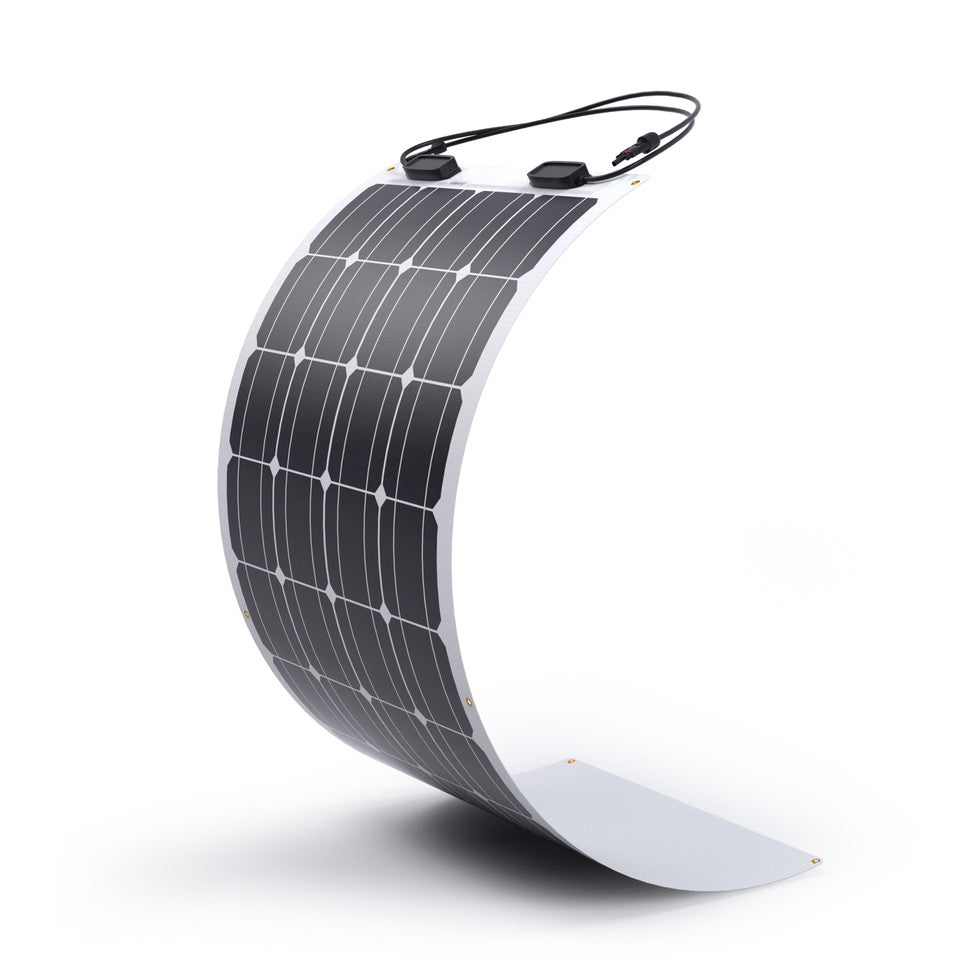

Renogy CORE 12V 100W Lightweight and Flexible Solar Panel

Lightweight, thin, and capable of flexing up to 248 degrees, this Renogy 100W Flexible Solar Panel is your perfect solution for a power-independent journey!

IP68 junction box and IP67 solar connector, excellent weatherproof performance, perfect for marine and outdoor use. At a weight of 4.2 pounds, this flexible solar panel only weighs 1/4 of its traditional 100W counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces. Perfect for RVs, Campers, Boats, and many others.

Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.

Specification

BUILT-IN COMPONENTS
Renogy 100 Watt Monocrystalline Solar Panel	Output Cables : 12 AWG (2.30 ft long)
Cell Type : Monocrystalline (4.92 x 4.92 in)	Number of Cells : 36 (4x9)
IP68 Rated Waterproof Junction Box	IP67 Rated Waterproof Solar Connectors
Specifications
Maximum Power at STC : 100W	Module Efficiency : 14.9%
Optimum Operating Voltage (Vmp) : 18.9V	Open-Circuit Voltage (Voc) : 22.5V
Optimum Operating Current (Imp) : 5.29 A	Short-Circuit Current (Isc) : 5.75 A
Operating Temperature : -40°F to 185°F (-40ºC to +85ºC)	Maximum Series Fuse Rating : 15A
Maximum System Voltage : 600V DC (UL)	Certifications : CE, ISO
Weight : 4.2 lbs (1.9 kg)	Dimensions : 48.0 x 21.6 x 0.08 in(1219 x 546 x2 mm)



Warranty Information

Material and workmanship warranty	5 Years
Performance Warranty	5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty



Certification
