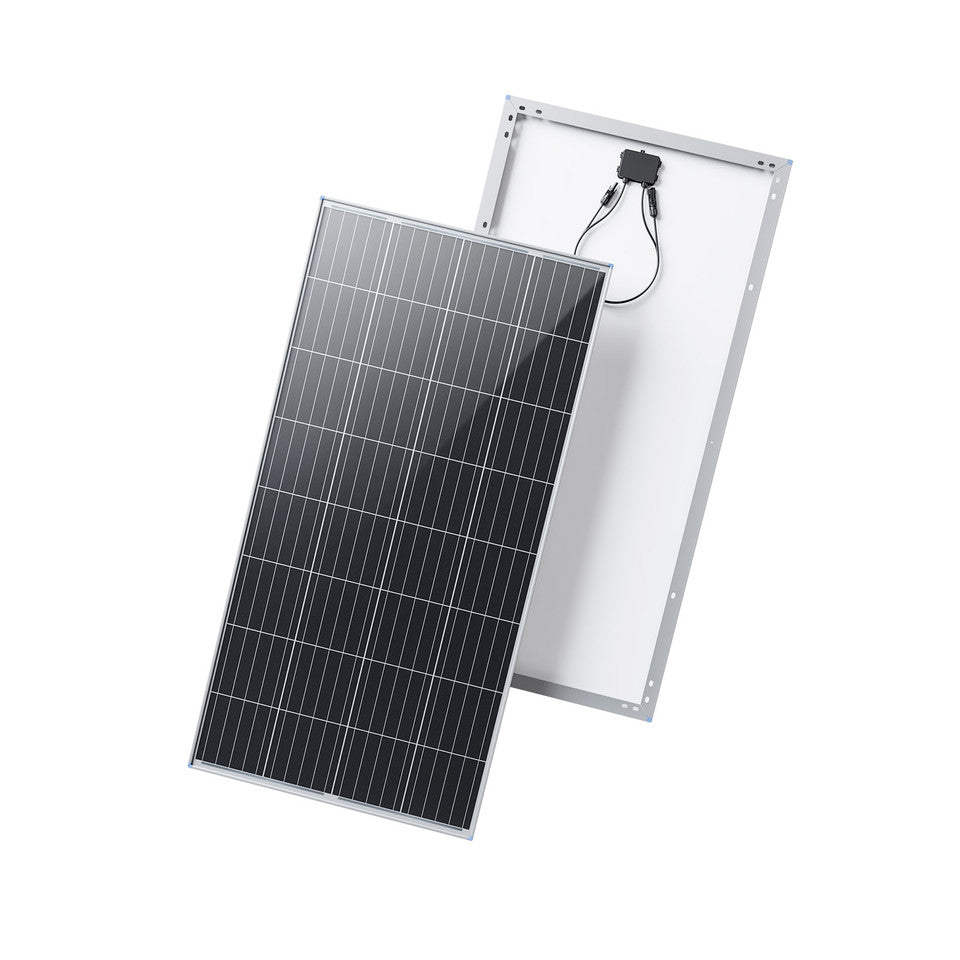

Renogy CORE 12V 175W Rigid Solar Panel

The Renogy 175 Watt 12 Volt Monocrystalline Solar Panel is a key component to any solar power (PV) system. Each solar panel includes solar connectors that extend from the junction box affixed to the back of each panel. The solar connectors are compatible with the Renogy solar connector Adaptor Kit - allowing for a quick and simple connection. Whether you take it camping in the mountains or for a trip to the beach, this off-grid panel can be a great start or addition to any Renogy off-grid system!

Each Renogy 175W Monocrystalline Solar Panel is capable of withstanding heavy snow and strong wind loads. Each panel is quality tested to ensure safety and longevity.

• Multi-layer laminations prevent hot-spot heating.
• Bypass diodes reduce shading power loss.
• Panels resist wind, snow, and impacts.
• Pre-drilled holes enable easy mounting.
• Durable, and corrosion-resistant for outdoor use.

The Specs



Specifications
Max Power at STC: 175W	Open Circuit Voltage: 21.6V
Short Circuit Current: 10.31A	Opitmum Operating Voltage: 18.1V
Optimum Operating Current: 9.67A	Operating Temperature: -40°F to 194°F (-40°C to 90°C)
Maximum System Voltage: 1000VDC UL	Maximum Series Fuse Rating: 15A
Cables: 14 AWG 2.5ft long	Dimensions: 49.7 x 27.5 x 1.38 in (1262 x 699 x 35 mm)
Weight: 22 lbs (9Kg)	Solar Cells: 32 Monocrystalline Cells
Junction Box: IP65	Connectors: Solar Connectors
Module Efficiency: 19.80%

Warranty Information

Panels	5 year 95% output warranty,10 year 90% output warranty,25 year 80% output warranty, 5 year material and workmanship warranty
Accessories	1-year material warranty



Certification
