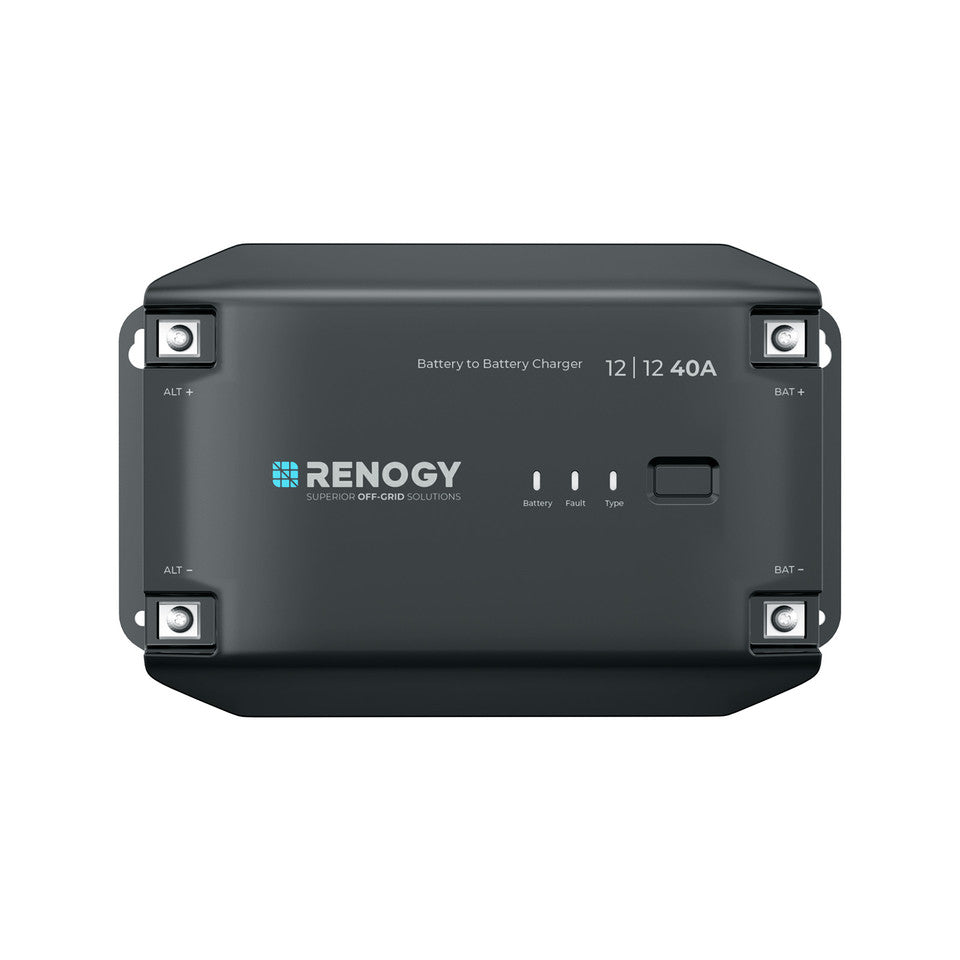

Renogy CORE 12V 40A DC-DC On-Board Battery Charger

Introducing Renogy 12V 40A DC to DC Battery Charger, the second generation of the DCC series. This innovation offers the ultimate driving charging experience with smart control. Compatible with smart and traditional generators, this 12V onboard battery charger ensures efficient energy utilization while safeguarding vehicle batteries. With multiple electronic protections, the product offers a reliable driving charging experience, achieving up to 94% charging efficiency. Integrated with intelligent charging logic, it seamlessly optimizes charging processes. Furthermore, with the remote monitoring feature via the app, you can easily keep track of the generator system's status. Elevate your driving charging experience with Renogy, whether you're exploring the great outdoors or living the van life, it is your dependable companion.

• -Alternator running detection safeguards the starter battery.
• -Simple and compact layout for easy installation.
• -BT-2 Bluetooth enables remote monitoring, records 365-day data.
• -Advanced protections ensure efficient & safe charging.
• -Li Battery Activation On/Off offers customizable performance.

Terminal Range: 8AWG - 6AWG

Grounding: Common Negative

Communication Protocol: RS485 Communication

Operating Temperature Range: -4℉ -122℉ /-25 ℃ - 60℃

Storage Temperature Range: -4℉ -122℉ /-40 ℃ - 85℃

Humidity: 0%-95%, No Condensation

Maximum Operating Altitude: 3000m

Enclosure Rating: 0%- 95% ,no condensation

Dimensions: 9.31 in (236.5 mm)x6.00 in (152.5 mm)x2.30 in(58 mm)

Weight: 4.41 lb / 1.88 kg

Certification: CE/RoHS/FCC

Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection

System Voltage: 12V-12V

Alternator Input Voltage: "Traditional Alternator: 13.2-16.0VDC Smart Alternator (Euro 6): 12-16.0VDC"

Maximum Output Current Rating: 40A

Output Power: 584W

Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate, User

Input Fuse Rating: 60A

Output Fuse Rating: 50A

Charging Efficiency: 94%

Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium), 0mV / ℃ / 2V; no compensation (Lithium)

Idle Power Consumption: ＜15mA

The First Option: battery charger x1, temperature sensor x1, IGN Signal Wire x1, User Manual x1, Terminal Ring x4

Accessories: 2-year material warranty
