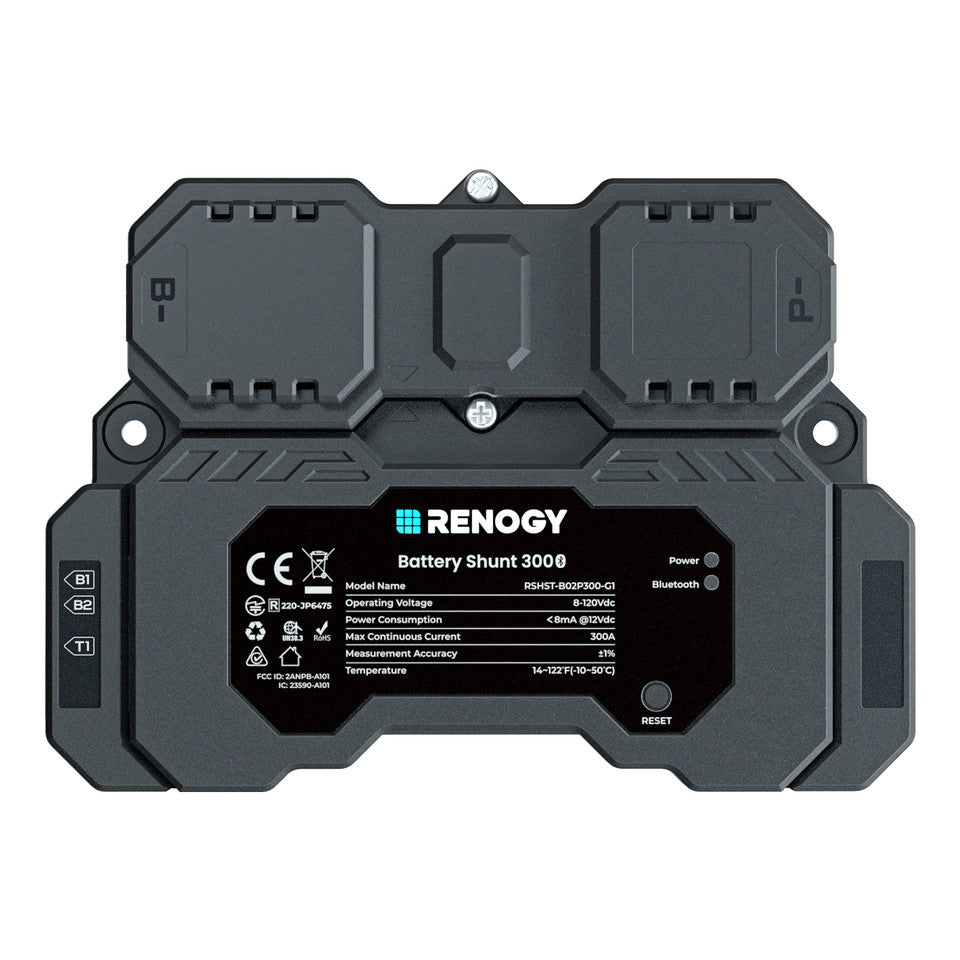

Renogy CORE 300A Battery Shunt with Bluetooth

Power Supply: 8 - 120 VDC

Power Consumption: <0.1 W

Communication: Bluetooth LE and BLE Mesh

Max continuous current: 300A

Max peak current: 500A(<10s)

Current accuracy: ±1%

Current Resolution: 0.01 A

Battery Capacity: 1 - 6500Ah

Voltage Input Range: 8 - 120V

Voltage input resolution: 10 mV

Temperature sensor range: -20~80℃

Temperature sensor accuracy: ±1%

Operating Temperature: 14℉~122℉(-10 ℃ to 50 ℃)

Operating Humidity: 0% to 95% RH

Operating Altitude: Less than 2000m above sea level

Installation: Surface mounting

Battery connection: M10 bolts

Weight: 0.57lb (260g )

Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)

Material and Workmanship Warranty: 1 year

Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC
