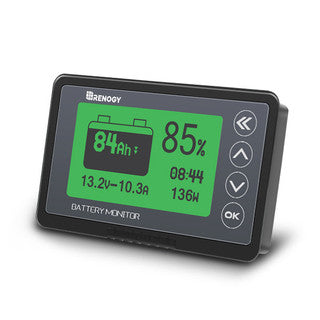

Renogy CORE 500A Battery Monitor with Shunt
Renogy CORE 500A Battery Monitor with Shunt
Regular price
£79.99 GBP
Regular price
Sale price
£79.99 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Renogy Battery Monitor is designed to monitor the performance of most battery types. Its high-precision measurements will eliminate the guesswork from battery usage and enhance your battery bank's performance and lifespan.
It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.
| 500A Battery Monitor with Shunt | |||
|---|---|---|---|
| Operation Specifications | Operation Specifications | ||
| Working Voltagel | 10-120V | Compatible Battery |
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid |
| Standby Dissipation | 1-2mA | Display |
LCD with Green Backlight brightness is adjustable |
| Working Dissipation | 10-15mA | Capacity Accuracy | ±1% |
| Preset capacity value | 0.1-9999.0 AH | Current Accuracy | ±1% |
| Backlight on current (>50A) | 100mA | Voltage Accuracy | ±1% |
| Mechanical Specifications | Certifications | ||
| Shielded Wire Length | 20 ft/6 m | ROHS | YES |
| Weight (LCD Interface) | 2.6 oz / 75 g | Warranty | |
| Size (LCD Interface) | 3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm | Material Warranty | 1 Year |
| B+ Wire Length | 3 ft/1 m | ||
| Temperature range | 14-140°F(-10-60°C) | ||
