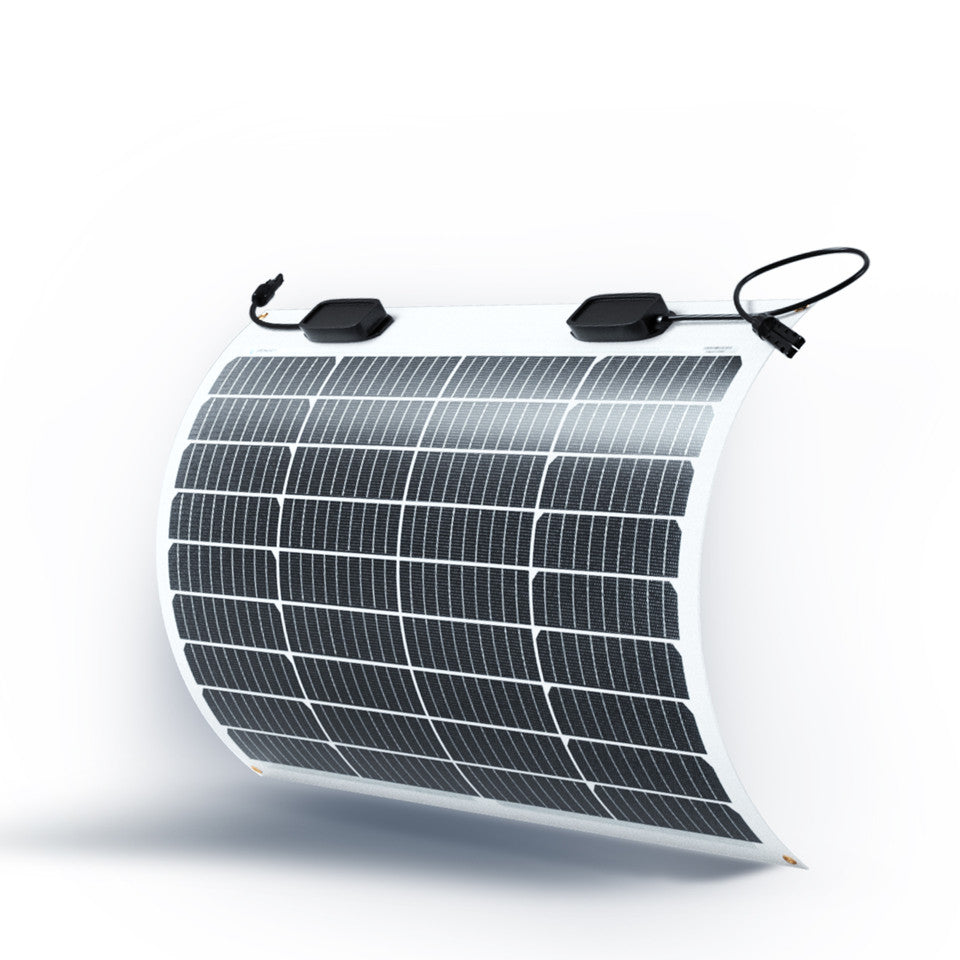

Renogy CORE 50W Monocrystalline Flexible Solar Panel

Lightweight and thin, with the capability to bend up to 248 degrees, the Renogy 50 Watt Flexible Monocrystalline Solar Panel is the perfect solution for your energy-independent journey!

With an IP68 rated waterproof junction box and IP67 rated solar connectors, it delivers weatherproof performance, ready for marine and outdoor use. Weighing in at just 3.1 lb, this highly flexible solar panels weigh 75% less than its traditional 50W counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces. Perfect for RVs, Campers, Boats, and many other scenarios.

Mounting Recommendation: The Renogy flexible solar panels must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor/professional installer.

There are two versions currently shipped, please rest assured that this does not affect use.

Maximum Power at STC: 50W

Open Circuit Voltage: 24.3V

Short Circuit Current: 2.75A

Optimum Operating Voltage: 20.3V

Optimum Operating Current: 2.47A

Dimensions: 26.9 x 20.0 x 0.16 in (683 x 508 x 4 mm)

Material and workmanship warranty: 5 year

Maximum Series Fuse Rating: 15 A

Operating Temperature: -40°F to 185°F(-40ºC to +85ºC)

Nominal Operating Cell Temerature (NOCT): 45±2ºC

Temperature Coefficient of Pmax: -0.37%/C

Temperature Coefficient of Voc: -0.28%/C

Temperature Coefficient of Isc: 0.048%/C

Rated Current: 30A

Maximum Voltage: 1000VDC

Maximum AWG Size Range: 10AWG

Temperature Range: -40ºF to 194ºF

IP Rating: IP 67
