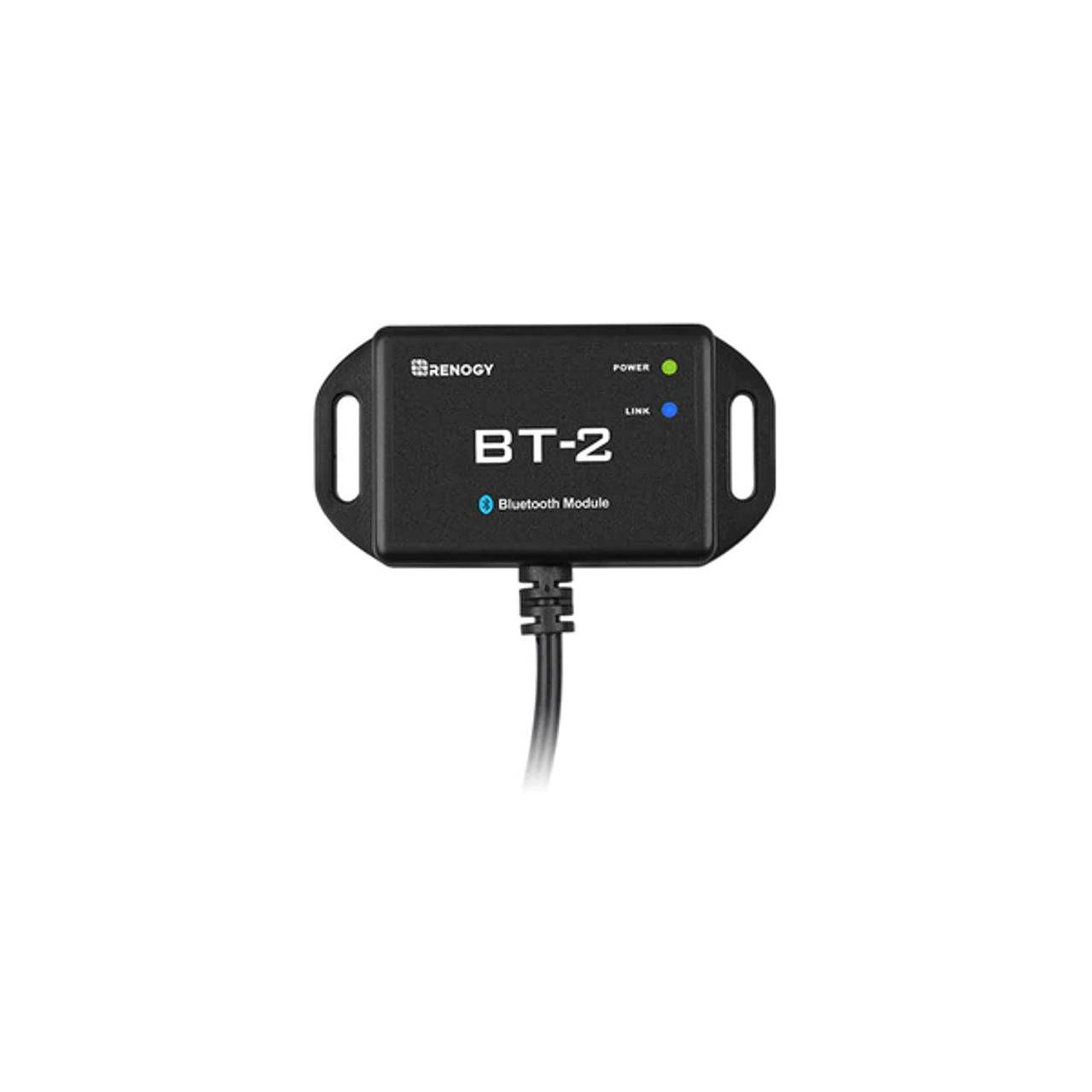

Renogy CORE BT-2 Bluetooth Module for Renogy Products w/ RS485 Port

The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, smart lithium batteries, and inverters. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App.

The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smart phone or tablet.



Specifications
Communication Protocol: RS485	Port Type: RJ45
Input Voltage: 5V or 12V	Protection Grade: IP54
Standby Power Consumption: 0.04W	Operating Power Consumption: 0.05W
Communication Range: ≤82ft	Serial Baud Rate: Fixed Baud Rate 9600bps
Cable Length: 5.00 m (16.4 ft)	Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Installation Dimensions: 67.3 φ3.5mm（2.66 φ 0.14in）	Operation Temperature: -20℃~85℃（-4°F to 185°F）
Weight: 130g (4.58oz)



Warranty Information

Accessories

1-year material warranty



Certification
