Renogy CORE CNCT-MC4Y Branch Connectors Solar MC4 Connectors Y Connector in Pair MMF+FFM
Renogy CORE CNCT-MC4Y Branch Connectors Solar MC4 Connectors Y Connector in Pair MMF+FFM
Regular price
£9.99 GBP
Regular price
Sale price
£9.99 GBP
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

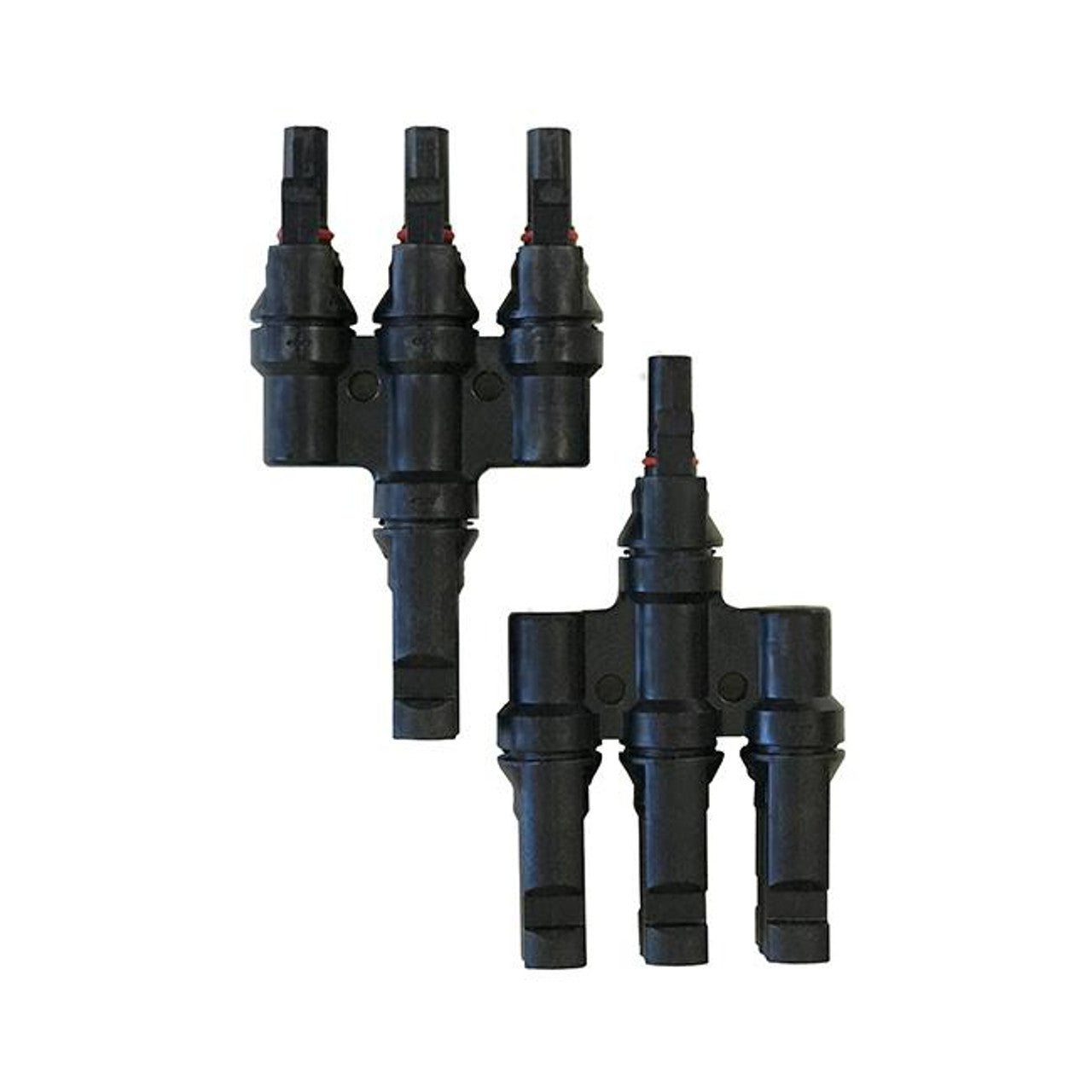

The Limited Branch Connector is a perfect solution for connecting three panels in parallel. These connectors have high aging resistance and UV endurance; making them weather-proof and able to withstand harsh environments. A rivet and lock is used to connect the cable and no extra tools are required for assembly or disassembly of plugs.
| Renogy 3 to 1 Solar Branch Connectors (Pair) | |
|---|---|
| Maximum working voltage: DC1000V | Rated Current : 30A |
| Flame class: UL94-V0 | Pollution degree: 2 |
| Contact resistance: ≤5mmΩ | Shell Protection degree: IP65 |
| Ambient temperature range：-40～+85℃ | Safety Level: class ‖ |
| Insertion force: ≤50N | Withdrawal force: ≥50N |
Warranty Information
| Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate; 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
