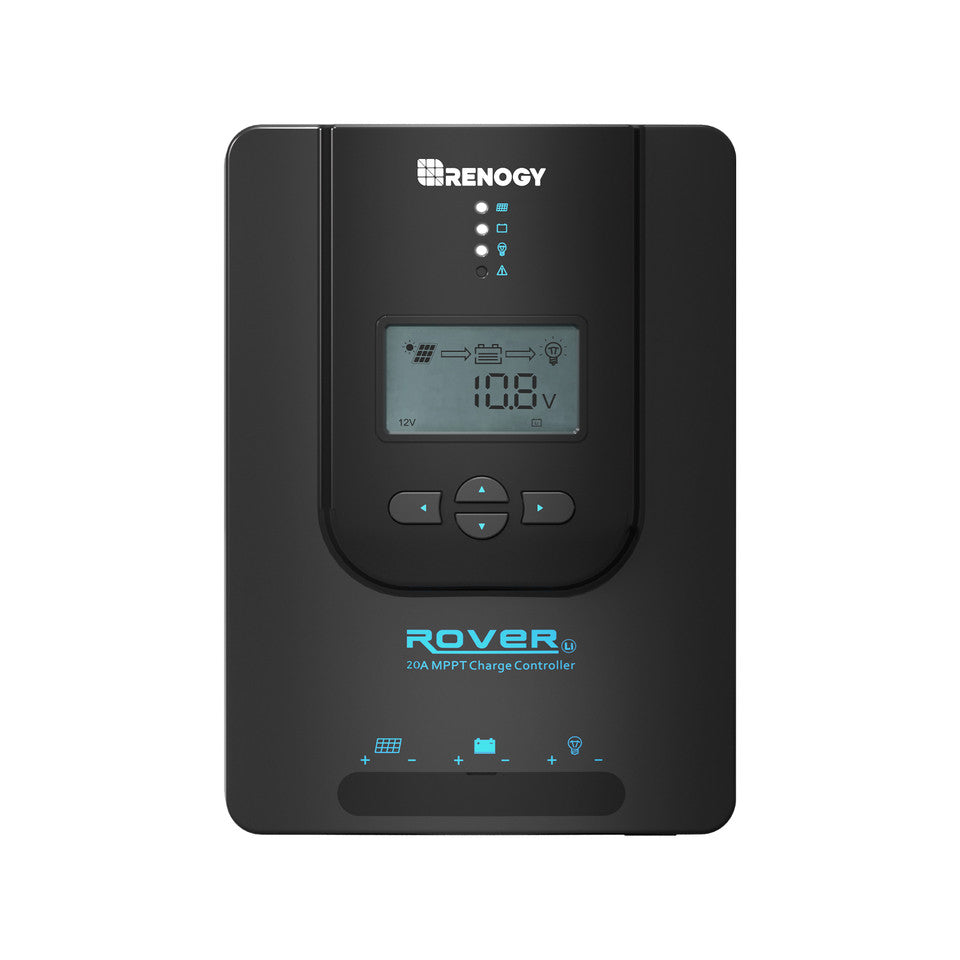

Renogy CORE Rover 12V 20A MPPT Charge Controller

• · Efficiency in tracking, conversion, and heat dissipation.
• · 4-stage charging with auto 12V/24V voltage detection.
• · Multiple electronic protections ensure system safety.
• · Supports remote monitoring via RS485 communication port.
• · Remote monitoring with RS485 communication port.

Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries)

Rated Charge Current: 20A

Max. PV Input Voltage: 95 VDC

Max. PV Input Power: 12V/260W, 24V/520W

Power Consumption: ＜100mA/12V; ＜58mA/24V

Max Battery Voltage: 32V

Ground Type: Negative

Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.

Protection Level: IP32

Operating Temperature Range: -35°C to 45°C; -31°F to 113°F

Storage Temperature Range: -35°C to 75°C; -31°F to 167°F

Operating / Storage Humidity: ≤ 90%, No Condensation

Temperature Compensation: -3mV/°C/2V

Dimensions: 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in

Weight: 3.1 lbs / 1.4 kg

Max. Terminals Size: 8 AWG 10mm2

CE: YES

FCC Class B Part 15 Compliant: YES

Material and workmanship warranty: 3 Year
