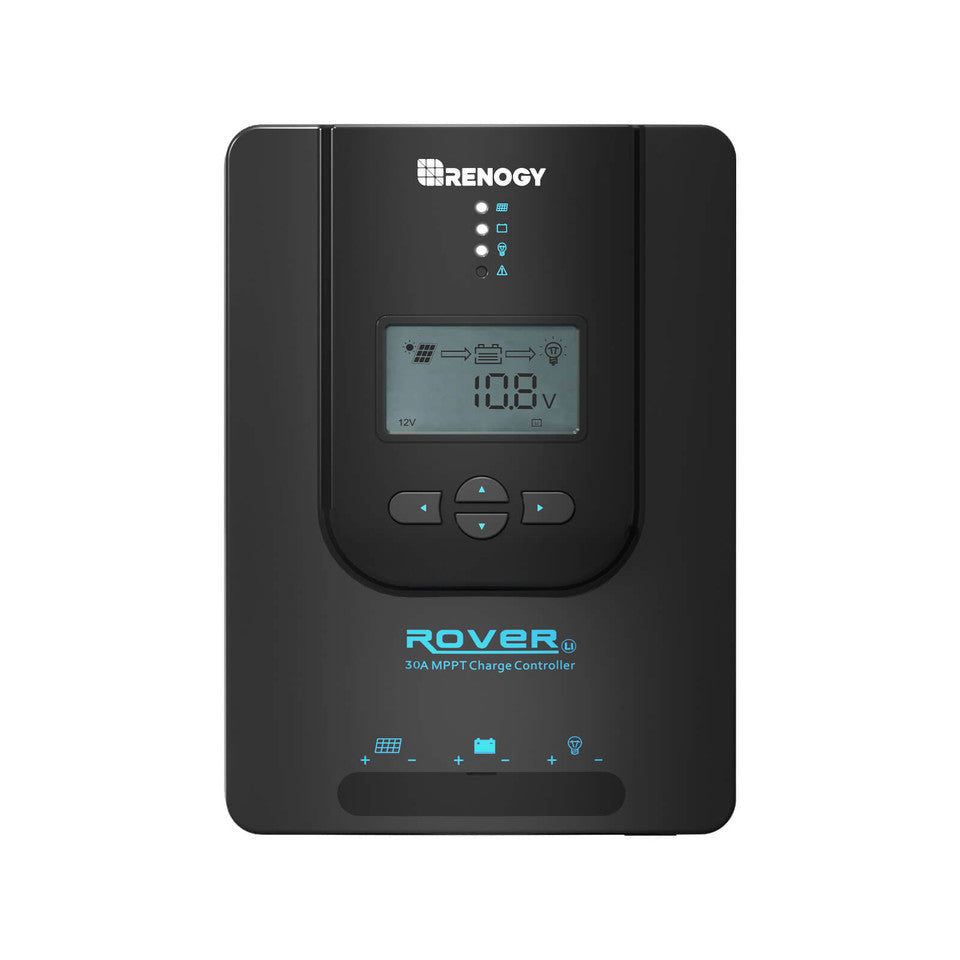

Renogy CORE Rover 12V 30A MPPT Charge Controller(With BT)

Rover 30A MPPT Solar Charge Controller

• Innovative MPPT Design: tracking efficiency of up to 99%.
• Automatically detects 12V or 24V DC system voltages.
• Multiple system protections.
• 4-Stage safely charging.
• Diverse load control & remote monitoring.

Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium types)

Rated Charge Current: 30A

Max. PV Input Voltage: 95 VDC

Max. PV Input Power: 12V/400W, 24V/800W

Power Consumption: ＜100mA/12V; ＜58mA/24V

Max Battery Voltage: 32V

Ground Type: Negative

Electrical Protection: Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.

Protection Level: IP32

Operating Temperature Range: -35°C to 45°C; -31°F to 113°F

Storage Temperature Range: -35°C to 75°C; -31°F to 167°F

Operating / Storage Humidity: ≤ 90%, No Condensation

Temperature Compensation: -3mV/°C/2V

Dimensions: 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in

Weight: 4.4 lbs / 2.0 kg

Max. Terminals Size: 8 AWG 10mm2

CE: YES

FCC Class B Part 15 Compliant: YES

Material and workmanship warranty: 2 Year
