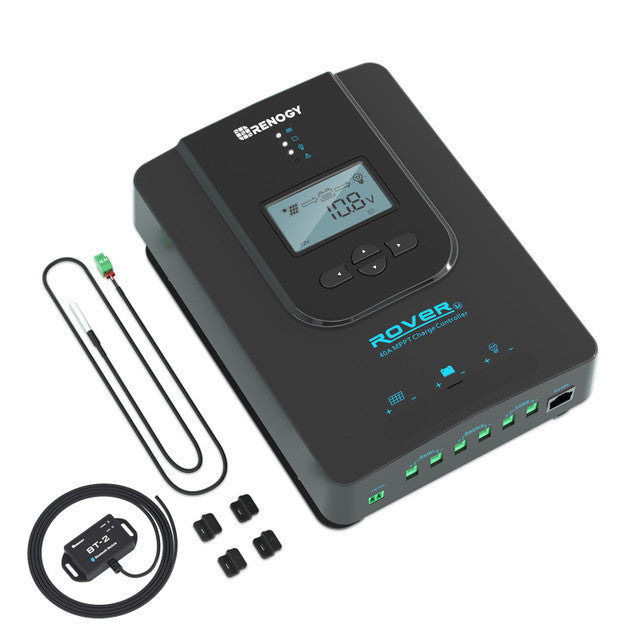

Renogy CORE Rover 12V 40A MPPT Charge Controller(With BT)

Meet the newly redesigned 40A Rover MPPT Charge Controller. This smart charge controller is capable of conveniently self-diagnosing itself in the event of an error and can be used with the Bluetooth Module; Renogy BT-1. By pairing the Rover with the BT-1 Bluetooth module and the Renogy DC HOME app through Bluetooth; users can monitor and adjust their solar system straight from their phones. The Rover was also built tough with a die-cast aluminum exterior which allows for safe heat dissipation and general protection from wear and tear.

Nominal System Voltage: 12/24V Auto-Detect

Rated Charge Current: 40A

Solar Input Voltage Range (Voc): 15VDC~100VDC

Max. PV Input Power: 12V/520W, 24V/1040W

Power Consumption: ＜100mA/12V; ＜58mA/24V

Battery Input Voltage Range: 10VDC~32VDC

Ground Type: Negative

Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.

Protection Level: IP32

Operating Temperature Range: -35°C to 45°C; -31°F to 113°F

Storage Temperature Range: -35°C to 75°C; -31°F to 167°F

Operating / Storage Humidity: ≤ 90%, No Condensation

Temperature Compensation: -3mV/°C/2V

Dimensions: 238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in

Weight: 2.0kg / 4.41 lb

Max. Terminals Size: 8 AWG 10mm2

Temperature Sensor: 9.8ft cable length

CE: Yes

FCC Class B Part 15 Compliant: YES

Material and workmanship warranty: 2 Year

Compatible MPPT Charge Controller: RNG-CTRL-RVR20/RNG-CTRL-RVR30-RNG-CTRL-RVR40/ RNG-CTRL-RVR60/ RNG-CTRL-RVR100

Compatible App: Renogy DC Home App available in both the App Store and Google Play

Communication Protocol: RS485 Modbus

Port Type: RJ12

Input Voltage : 5V

Protection Grade: IP54

Standby Power Consumption: 0.04W

Operating Power Consumption: 0.05W

Serial Baud Rate: Fixed Baud Rate 9600bps

Communication Range: ≤82ft (25m)

Cable Length: 16.4 ft (5.00m )

Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)

Weights: 4.58oz (130g )

Operation Temperature: -31℉ to 113℉/-35℃ to 45℃

Storage Temperature: -31℉ to 167℉/-35℃ to 75℃

Operating Altitude: ≤3000m

FCC Class B Part 15 Compliant: YES
