Renogy CORE Solar Panel to Charge Controller Adaptor Kit 9 in 12 AWG
Renogy CORE Solar Panel to Charge Controller Adaptor Kit 9 in 12 AWG
Couldn't load pickup availability

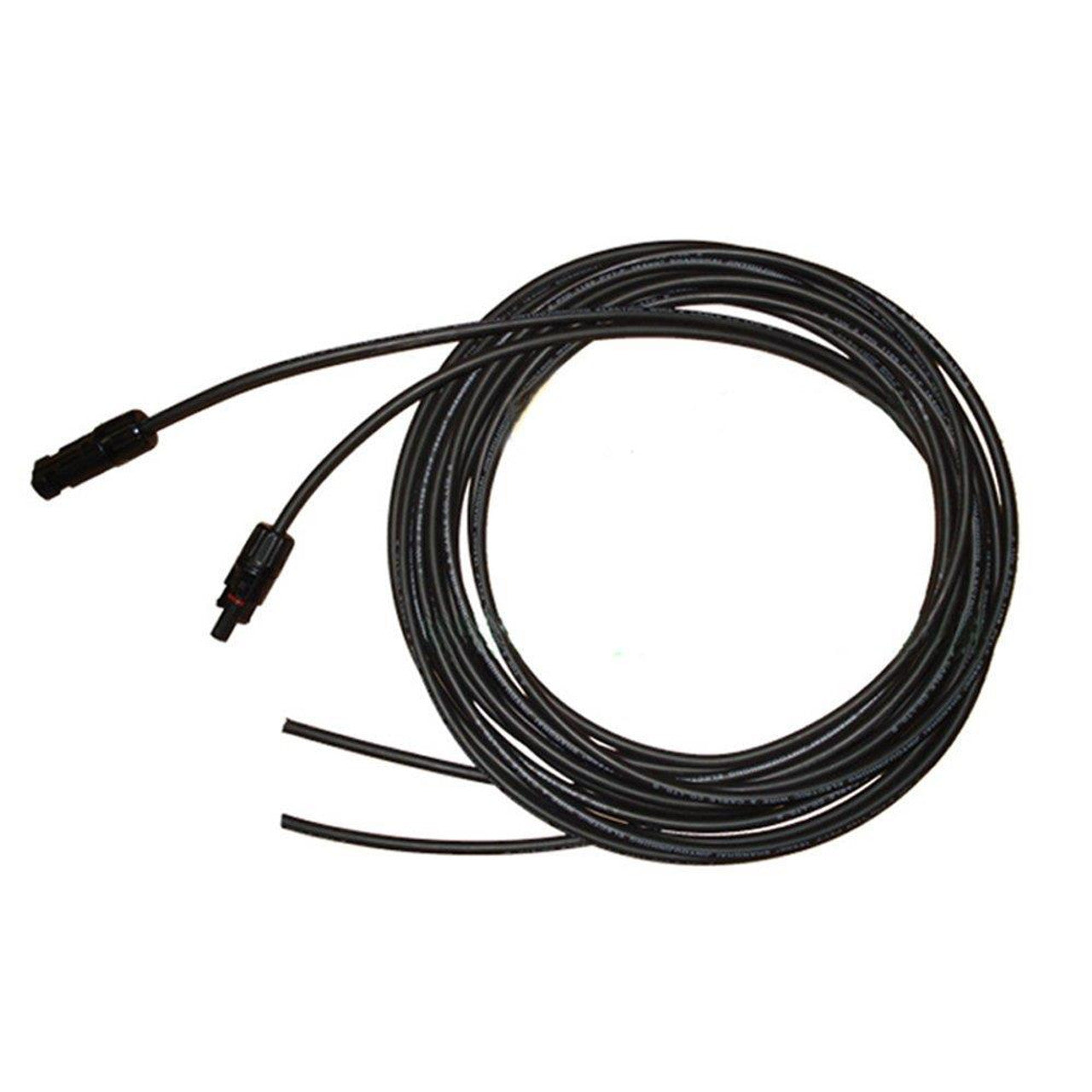

The Renogy Adaptor Kit is a set of two wires designed specifically for connecting a Renogy solar panel to a charge controller. The Adaptor Kit includes male and female connectors on one end for effortless connection to the solar panel, and exposed wire on the other end to lead directly into the charge controller. This wiring kit is essential for off-grid solar installations, roof or ground level, and is offered in a wide range of sizes. The wiring is weatherproof and designed to withstand extreme heat and cold. This wiring kit is ideal for Renogy Off-Grid Kits ranging from 100W to 400W.
Renogy offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer's unique needs. The Renogy 10ft 10AWG Adaptor Kit allows for 10 feet of length between the solar panel and charge controller.
Renogy 9in 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair) | |
---|---|
Length: 9in | AWG: 12 |
Rating Voltage: 600/1000V | Temperature: -40°F to +185°F |
Normal Cross Sectional Area of the Conductor (mm2): 4.0 | Diameter of Wires in Conductor (mm): 3.02±0.08 |
Min. Wall Thickness of Insulation (mm): 0.78 | Min. Wall Thickness of Sheath (mm): 0.97 |
Number of Wires in Conductor: 56 | IP 65 Protection |
Conductor: Tinned copper wire |
