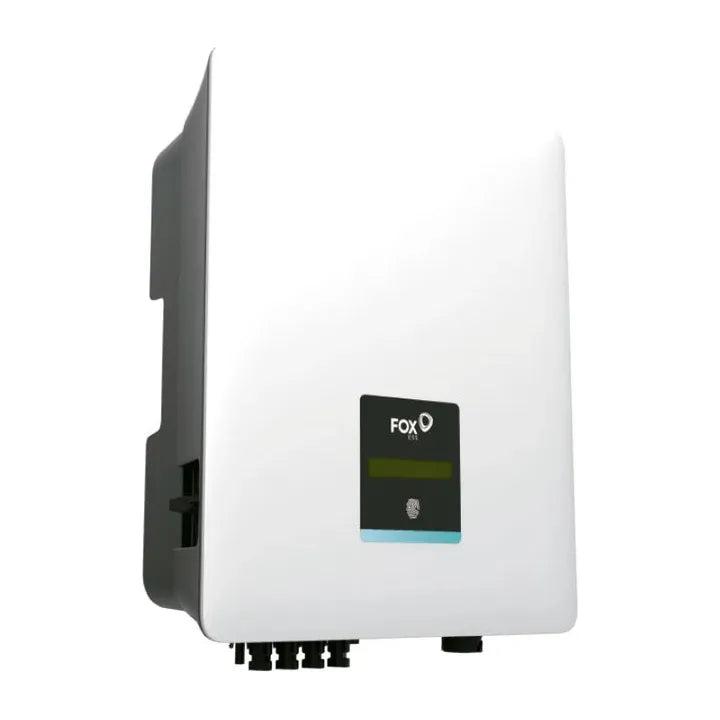

FOX ESS - PV Inverter - T Series - 17.0kW

T17-G3

Dual-MPPT T Series range includes 6.0 - 25.0kW models. The T Series a 3-phase aimed at domestic and small-scale commercial installations.

• High Performance: Low start-up voltage, wide voltage range, 98.6% maximum efficiency.
• Easy Installation: Flexible configuration, plug and play set-up.
• IP65 Rated: Engineered to last with maximum flexibility. Suitable for outdoor installation.
• Remote Monitoring: Monitor your system remotely via smartphone app or web portal.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

Supplier Part No: T17

Weight: 20 kg

Rated Power: 17,000 W

Min PPT Voltage: 140 V

Max PPT Voltage: 1,100 V

DC Startup Voltage: 140 V

DC Shutdown Voltage: 1,100 V

Max Input Voltage: 1,100 V

Max DC Power: 25,500 W

Max AC Power (5 Minutes): 17,000 W

Surge AC Power (1 Second): 18,700 W

Max DC Current: 28 A

Max DC Inputs: 4

Has DC Fuses: 4

Connector: MC4

Included Connectors: 4

Euro Efficiency: 97.8 %

Transformer: N/A

MPPT Quantity : 2

Has Integrated DC Switch:Yes

Warranty: 5 years
