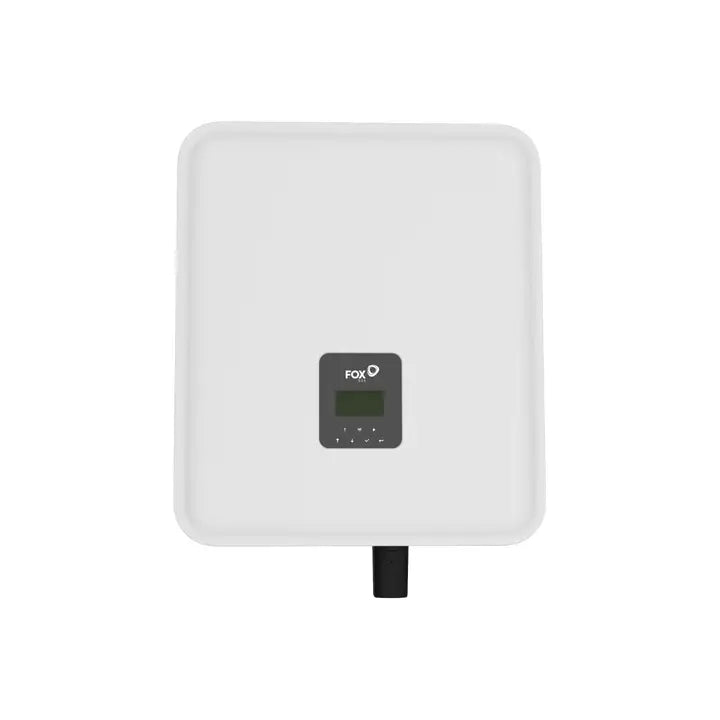

FOX ESS H3 6.0KW 3PH Hybrid/AC Inverter

FOX ESS H3 6.0KW 3PH Hybrid/AC Inverter

£1,877.65 GBP
£1,877.65 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.

  • Easy installation - Plug & Play, built-in fuse protection.
  • Maximum yields - Low starting voltage, 97.3% maximum efficiency
  • Maximum flexibility - 3 battery types to choose from, True 3-phase backup power
  • Monitoring - Monitor remotely via app or web portal.

FoxESS inverters are configurable with the following batteries:

  • 1x FE-HV-BMS + (4-8)x FE-HV-2600
  • 1x ECM-2900 (master) + 2-5x ECS-2900 (slave)
  • 1x ECM-4100 (Master) + 2-5x ECS-4100 (Slave)

FoxESS inverters are not compatible with SolarEdge or Huawei optimizers, but with those from Tigo.

3PH Smart Meter included in packaging.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

PLEASE NOTE: This product requires the following meter for full operation: FE-3PH-METER-CT

Supplier Part No: FE-H3-6.0
Weight: 28 kg
Rated Power: 6,000 W
Min PPT Voltage: 160 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 160 V
DC Shutdown Voltage: 160 V
Max Input Voltage: 1,000 V
Max DC Power: 9,000 W
Max AC Power (5 Minutes): 6,000 W
Surge AC Power (1 Second): 9,000 W
Max DC Current: 14 A
Max DC Inputs: 2
Has DC Fuses: 1
Connector: MC4
Included Connectors: 4
Euro Efficiency: 97.8 %
Transformer: N/A
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
