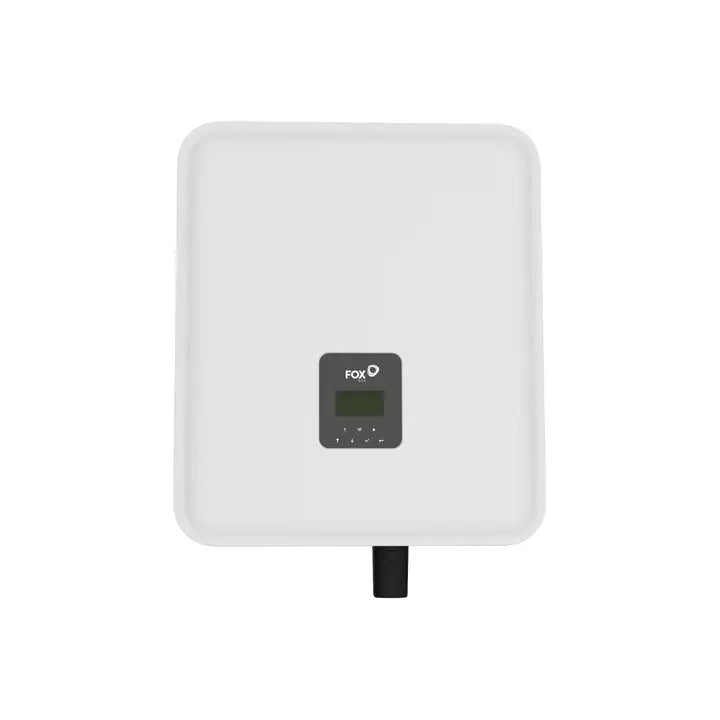

FOX ESS H3 8.0KW 3PH Hybrid Inverter

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.

• Easy installation - Plug & Play, built-in fuse protection.
• Maximum yields - Low starting voltage, 97.3% maximum efficiency
• Maximum flexibility - 3 battery types to choose from, True 3-phase backup power
• Monitoring - Monitor remotely via app or web portal.

FoxESS inverters are not compatible with SolarEdge or Huawei optimizers, but with those from Tigo.

3PH Smart Meter included in packaging.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

Weight: 28 kg

Rated Power: 8,000 W

Min PPT Voltage: 160 V

Max PPT Voltage: 1,000 V

DC Startup Voltage: 160 V

DC Shutdown Voltage: 160 V

Max Input Voltage: 1,000 V

Max DC Power: 10,400 W

Max AC Power (5 Minutes): 8,000 W

Surge AC Power (1 Second): 8,800 W

Max DC Current: 26 A

Max DC Inputs: 3

Has DC Fuses: 1

Connector: MC4

Included Connectors: 4

Euro Efficiency: 98 %

Transformer: N/A

MPPT Quantity : 2

Has Integrated DC Switch: Yes

Warranty: 5 years
