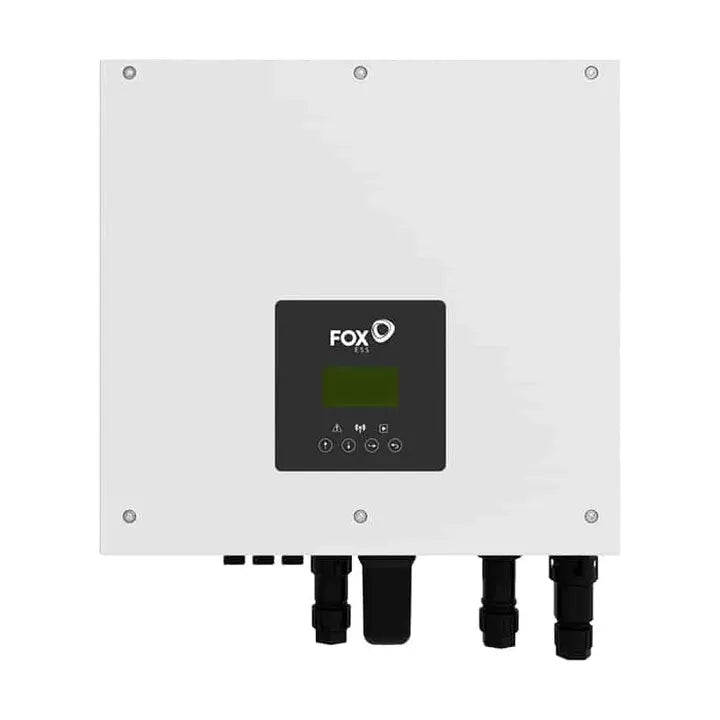

Fox H1 5.0kW Hybrid Inverter G2

The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also avalible via your smartphone or web portal.

• IP65 rated - suitable for outdoor installations
• Remote monitoring via web portal or smartphone
• Easy to expand battery capacity
• Dual MPPT - ensure optimal solar production
• High round-trip efficiency of 97%

CT Clamps and WiFi stick are included in the box. A second CT will be required if there's another generator set (i.e PV, wind or other).

A meter will be required for >30m distance between inverter and incoming power connection point.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

Weight:

22 kg

Rated Power:

5,000 W

Min PPT Voltage:

80 V

Max PPT Voltage:

550 V

DC Startup Voltage:

75 V

DC Shutdown Voltage:

601 V

Max Input Voltage:

600 V

Max DC Power:

7,500 W

Max AC Power (5 Minutes):

5,000 W

Surge AC Power (1 Second):

5,500 W

Max DC Current:

32 A

Max DC Inputs:

2

Has DC Fuses:

0

Connector:

MC4

Included Connectors:

4

Euro Efficiency:

97 %

Transformer:

None

MPPT Quantity :

2

Has Integrated DC Switch:

Yes

Warranty:

5 years
