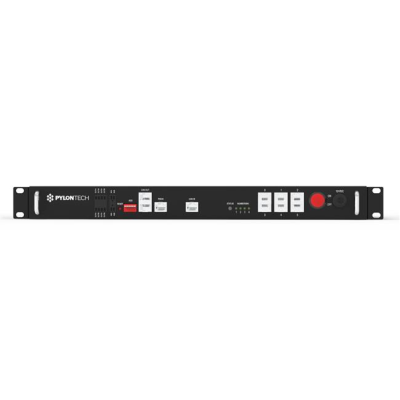

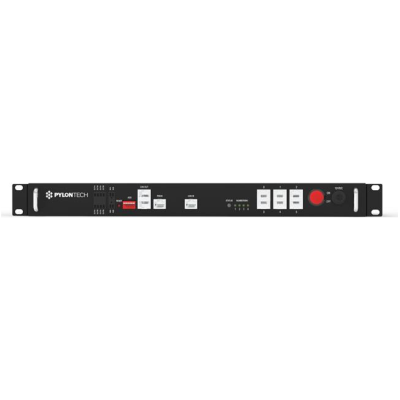

Pylon Communication Hub - LVHUBA1C0MX115R1

The Pylontech LV-Hub is essential for communication and connectivity of either US2000 or US3000 batteries.

The Hub is for connecting up to five stacks of Pylontech batteries, connecting to the first ‘master battery’ of each stack.

Each battery stack can configure max 8pcs of US2000 & max. 12pcs of US3000 battery modules. When each battery group’s current is 120A, the battery group must configure 2 pairs of external power cables. The Hub connects vis RS485/CAN Communication cables.

• Manufacturer - Pylon Technologies
• Weight - 3.5 kg
• Accessory Product Type - Communication
• Commodity Code - 85367000
• Dimensions (mm) (H x W x D) - 44 x 442 x 150
