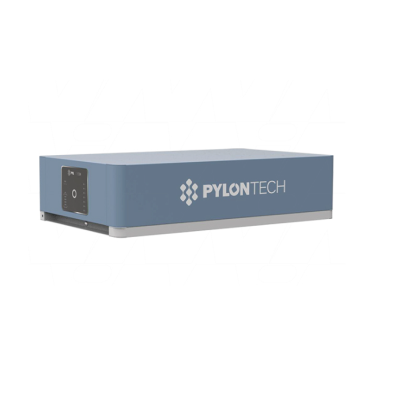

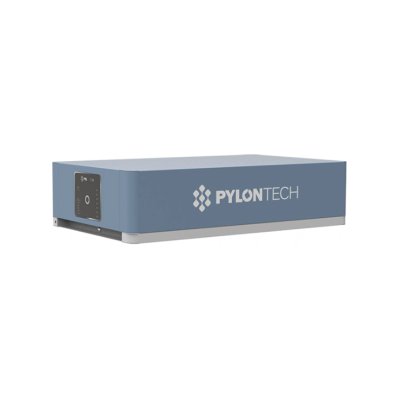

Pylon Force H1 Battery Management Unit - FC0500-40S

Pylontech Force H1 BMS Controller is a component of the Force H1 range of ESS Modules and must be used with the FH48074 Battery Module/Cassette. BMS comes supplied with UP/US Cable Kit.

• Cycle life: >5000 cycles @ 25°C with 90% DoD for daily cyclic applications
• Working Temperature Range 0°C to 50°C with excellent discharge performance & cycle life
• Storage temperature range -20~60°C
• Suitable for indoor and covered outdoor (IP55) installation
• Cathode material is made from LiFePO4 for safety performance and long cycle life
• The BMS has protection functions including over discharge, over charge, over current and high/low temperature
• Compatible with many available Hybrid inverters
• Clean Energy Council Approved (CEC)
• Modular design from 10.65kWh to 24.86kWh enables quick and secure installation, & maintenance with no exposed wiring or connectors

• Manufacturer - Pylon Technologies
• Weight - 36.0 kg
• Battery Chemistry - Lithium-Ion
• Commodity Code - 85371010
• Dimensions (mm) (H x W x D) - 380 X 190 X 600
