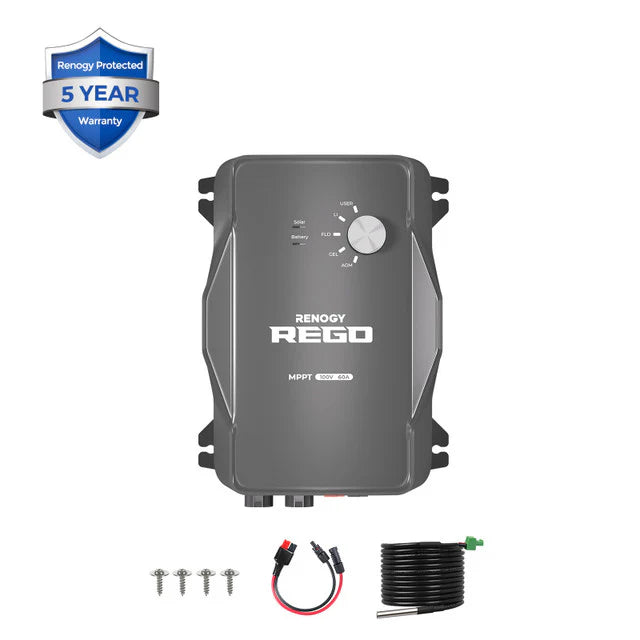

Renogy REGO 12V 60A MPPT Charge Controller
Renogy REGO 12V 60A MPPT Charge Controller
Couldn't load pickup availability
The REGO 12V 60A MPPT Solar Charge Controller is designed to install easily and protect your solar system completely. Its plug-and-play connections can save a lot of installation time compared with traditional controllers. With advanced BPU (Battery Protect Unit) technology, it provides excellent protection for the batteries from cell damage and failure, ensuring the whole system is safe. The MPPT technology here increases tracking efficiency to 99%, which significantly improves solar power output and thus increases more energy to your system. It is compact yet durable, combining high technology with pleasing aesthetics, saving space yet outperforming competitors in its class. The REGO 12V 60A MPPT Solar Charge Controller gives you unequal efficiency and reliability.
REGO 12V 60A MPPT Solar Charge Controller | |
---|---|
Model:RCC60REGO | Rated System Voltage:12V |
Rated Charge Current:60A | Rated Max Charge Power:800W |
Battery Operating Range:10 -16V | Battery Types:SLD/AGM;FLD;GEL;USER;LI |
Max Input Current (short-circuit, Isc):50A | Power Limiting Protection:Up to 800W/12V |
Solar Input Voltage Range (VOC):100V | MPPT Voltage Range:15-100 VDC /12V |
Idle Consumption:≤0.5W | Grounding Type:Common Negative Lug |
Operating Temperature Range:-20 ℃ - 60℃ / -4 ℉ - 140℉ |
Storage Temperature Range:-25 ℃ - 65℃ / -13 ℉ - 149℉/ |
Temperature Compensation:-3mV / ℃ / 2V (Non-Lithium) '0mV / ℃ / 2V; no compensation (Lithium) |
Communication Protocol:CAN Bus |
Humidity:0%-90%RH | Dimensions (L x W x D):9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm |
Terminal Size:Anderson PP75 | Terminal Range:8AWG-6AWG |
Certifications: | |
CB+IEC 62109 | YES |
FCC | YES |
CE and RoHS compliant | YES |
UL1741,CAN/CSA-C22.2 No.107.1 | YES |
EMC,EN61000-3-1/-3;EN301489-1/17 | YES |
RF,EN300328 | YES |
Warranty Information
Material and workmanship warranty | 5 Year |
