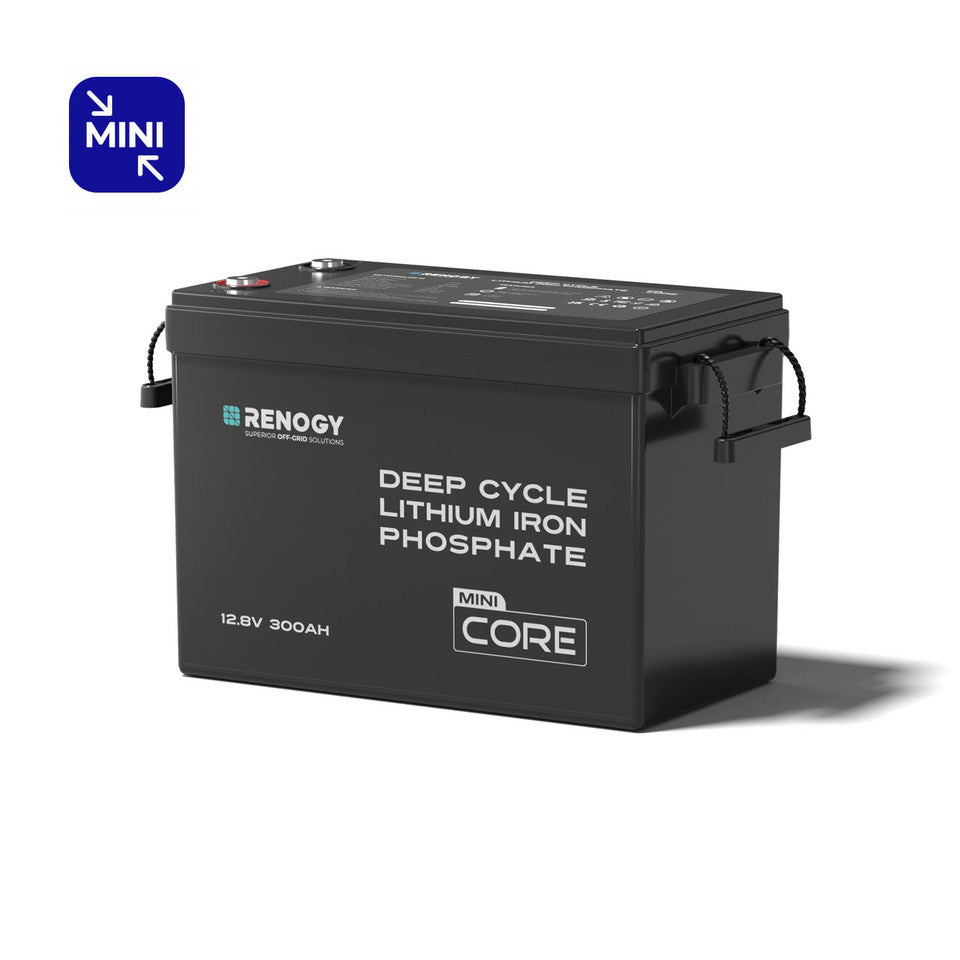

Renogy 12V 300Ah Core Series Deep Cycle Lithium Iron Phosphate Battery（Mini Series）

• -Lighter than ever at 25 kg or 57% lighter than 12V 200Ah lead-acid.
• -Low-temperature protection (charge <32°F, discharge < -4°F).
• -Compact design! 31% smaller than other 12V 300Ah LFP batteries.
• -5-year warranty. Certified by FCC, CE, ROHS, UKCA, and more.
• -Grade-A prismatic LiFePO4 cells offer 5000+ cycles at 80% DOD.
• -3840Wh capacity. Max 4P4S, expandable to 61.44kWh.

Rated Capacity (0.5C, 25°C): 300AH

Nominal Voltage: 12.8V

Energy: 3840Wh

Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charge Temperature: Charge: 32°F to 140°F (0°C to 60°C)

Discharge Temperature: Discharge: -4°F to 149°F (-20°C to 65°C)

Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)

Operation Relative Humidity: 5% to 95%

Dimension (L x W x H): 384 x 194 x 253 mm (15.12 x 7.64 x 9.96 in)

Weight: 25.0 kg / 55.1 lbs

Terminal Bolt Size: M8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm

Protection Rating: IP65

Charge Voltage: 10V to 14.8V

Maximum Continuous Charge Current: 150A

Maximum Continuous Discharge Current: 200A

Peak Discharge Current: 380A @ 10s

MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCA: YES

opc:

Warranty: 5-year material warranty
