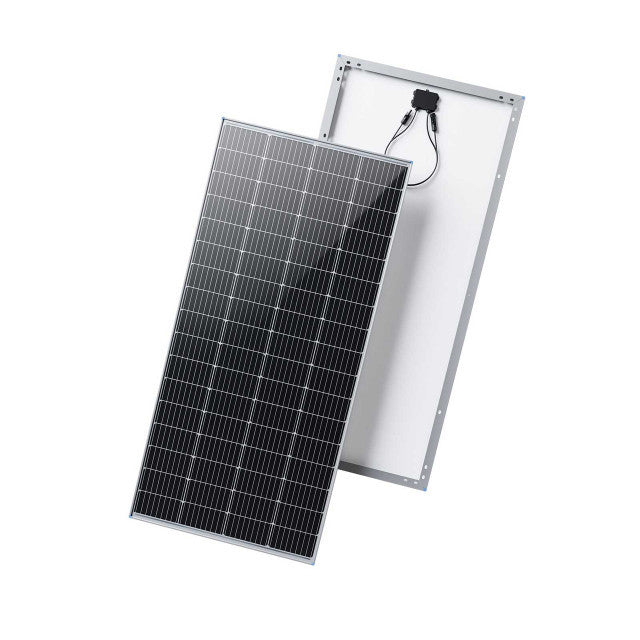

Renogy CORE 12V 200W Rigid Solar Panel

Renogy CORE 12V 200W Rigid Solar Panel

£244.99 GBP
£244.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Built with Grade A+ solar cells, this panel maximizes efficiency through 9 busbars for enhanced conductivity and PERC technology for improved light reflection.

  • · Delivers up to 1000Wh per day with 5-6 hours of sunlight.
  • · 10-year warranty and 25-year 80% power output guarantee.
  • · 9 bus-bars and PERC technology for higher efficiency.
  • · Half-cut cells and bypass diodes enhance accidental shading.
200 Watt 12 Volt Monocrystalline Solar Panel

Max Power at STC
200W
Open Circuit Voltage
23V
Short Circuit Current
11.05A
Optimum Operating Voltage
19.2V
Optimum Operating Current
10.42A
Operating Temperature
-40°F~194°F / -40℃~90℃
Maximum System Voltage
600 VDC UL
Maximum Series Fuse Rating
20A
Output Cable
13 AWG (2.6 ft long)
Dimensions
58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight
26.46 lb (12 kg)
Solar Cells
68 Cells ((2+2)*17)
Junction Box
IP65
Connectors
Solar Connectors
Module Efficiency
19.2%
Cell dimension
(158.75 x 158.75) mm / (6.25 x 6.25) in x 40 cells
Material and workmanship warranty
10-Year Workmanship Warranty
Performance Warranty
Over 80% Output at 25 Years
parameterEnd
TRUE
Watt
200W
Voltage
12V
