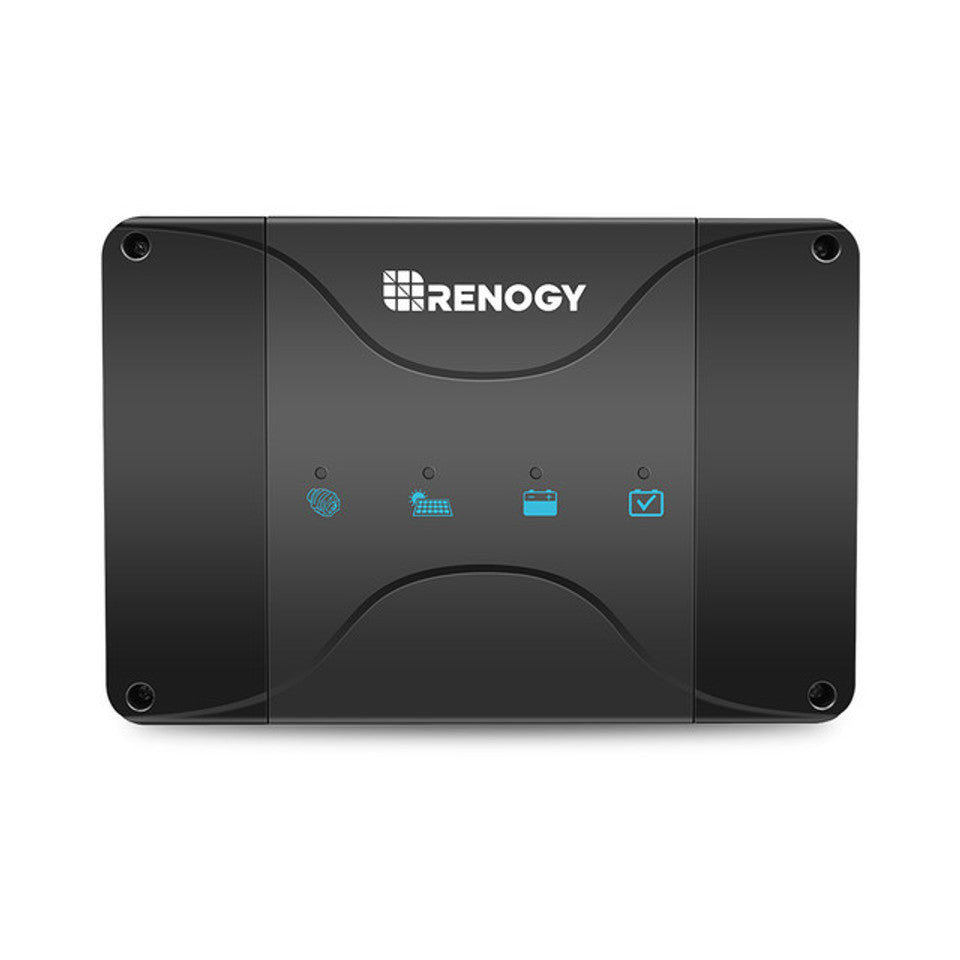

Renogy CORE 12V 50A DC-DC On-Board Battery Charger with MPPT

Renogy CORE 12V 50A DC-DC On-Board Battery Charger with MPPT

£299.99 GBP
£299.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Renogy's enhanced DC-DC Dual Input Battery Charger now supports up to 50V solar input, enabling faster and more efficient house battery charging.

  • · Enhanced heat dissipation and safety.
  • · Maximum solar panel input voltage has been upgraded to 50V.
  • · Versatile connections for DIY solar panel setups.
  • · Optimized charging logic for a significant efficiency boost.
  • · Control charging via the DC Home app.
ELECTRICAL DATA
System Voltage
12V-12V
Input Voltage
50 VDC
Output Voltage
9-16 VDC
Alternator Input
Traditional Alternator: 13.2-16 VDC
Smart Alternator (Euro 6): 12-16 VDC
Maximum Output Current Rating
50A
Output Power
660W
Battery Types
AGM/SLD , GEL ,FLD ,LI,USER
Input Fuse Rating
75A-100A
Output Fuse Rating
75A-100A
Charging Efficiency
94%
Temperature Compensation
'-3mV / ℃ / 2V (Non-Lithium)
'0mV / ℃ / 2V (Lithium)
Idle Power Consumption
＜30mA
GENERAL DATA
Model
RBC50D1S
Terminal Size
M8 x 1.25 - 10mm
Terminal Range
8AWG-4AWG
Grounding
Common Ground
Communication Protocol
RS485
Operating Temperature Range
'-31℉ to 149℉/-35℃ to 65℃
Storage Temperature Range
'-40℉ to 176℉/-40℃ to 80℃
Humidity
0%-95%, No Condensation
Maximum Operating Altitude
N/A
Enclosure Rating
N/A
Dimensions
9.61 x 5.75 x 3.78 inch/244 x 146 x 96mm
Weight
4.10 lb / 1.86 kg
Certification
CE;ROHS;FCC Part 15 class B; ETL listed to UL 1741 & CSA C22.2
Warranty
2-year material warranty
Protection
Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
