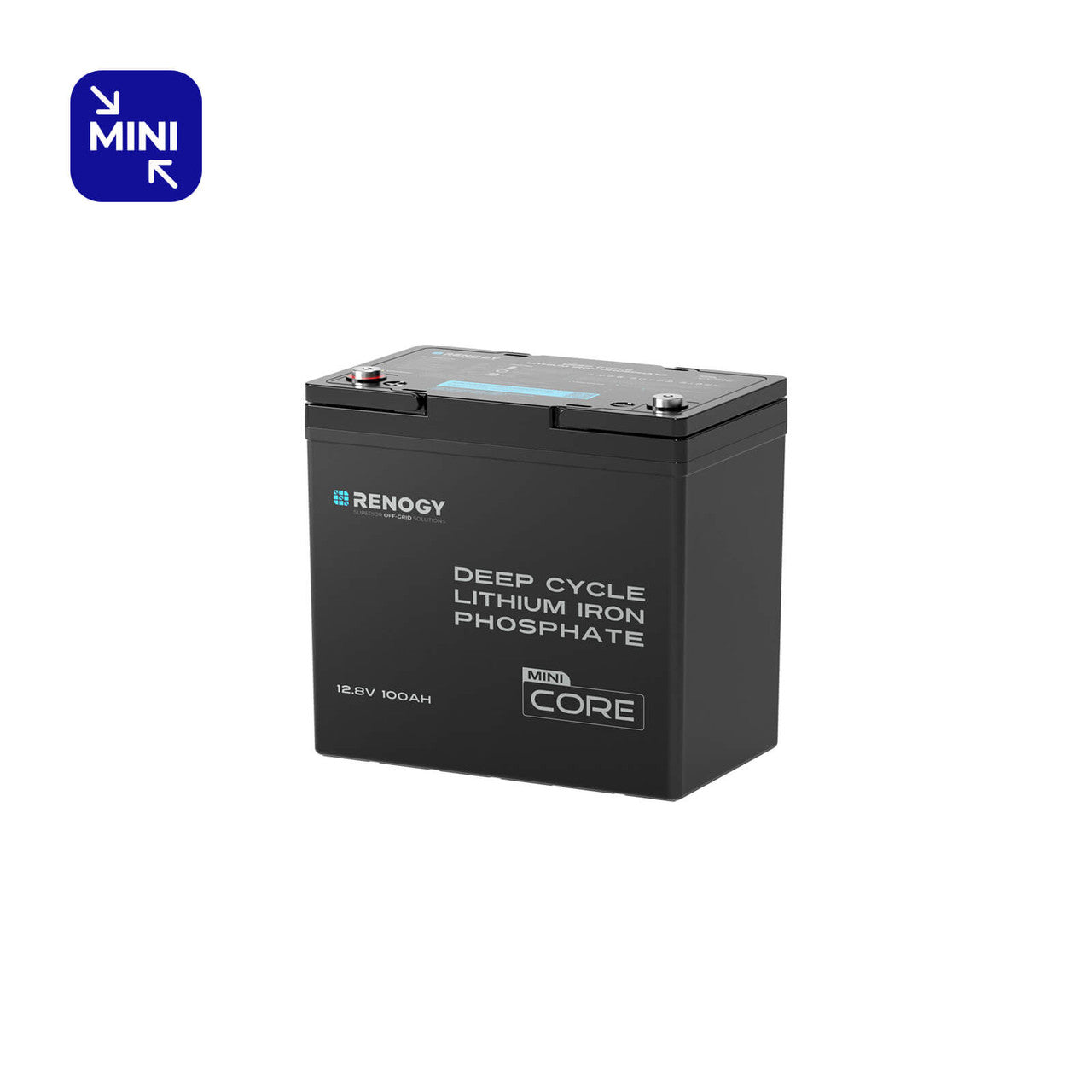

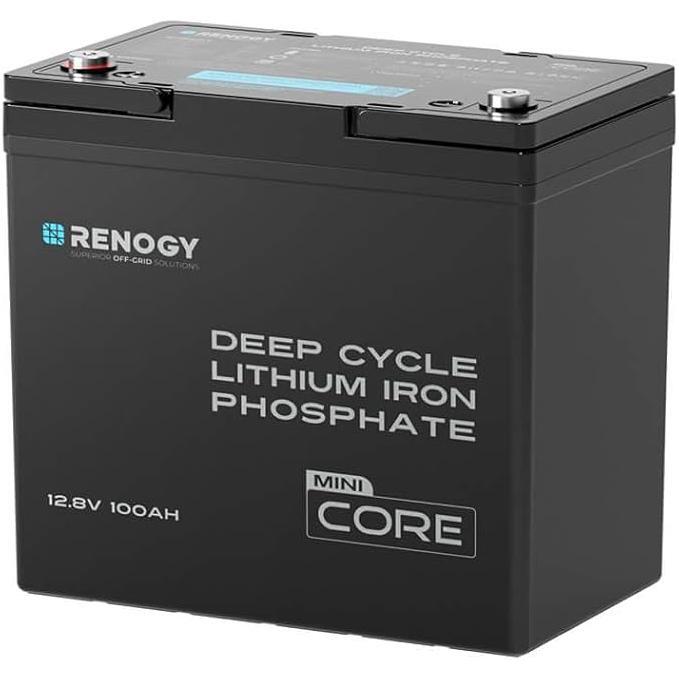

Renogy12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery（Mini Series）

Renogy12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery（Mini Series）

£399.99 GBP
£399.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Introducing the Core Mini: Renogy's most compact 12.8V 100Ah LiFePO4 battery, delivering maximum power in half the space.

Revolutionary in size yet uncompromising in performance, the Core Mini packs full-sized power into a package half the size of a traditional Group 31 battery. Perfect for space-conscious installations in teardrop trailers, kayaks, and other compact spaces, this powerhouse opens new possibilities for outdoor adventures.

Built for the demands of outdoor life, the Core Mini features: Advanced low-temperature charging protection for safe winter operation IP65-rated weatherproof construction Vibration-resistant design for rough terrain Seamless integration with the DC Home app or Renogy ONE when paired with a Renogy 300A Battery Shunt (sold separately)

  • -The smallest 12.8V 100Ah LFP Battery (Group 22NF) in Renogy's lineup
  • -Built-in low-temperature charging cut-off ensures safe winter operation
  • -Compatible with Renogy 300A Battery Shunt for remote monitoring
  • -Multi-orientation mounting for max space efficiency in tight spaces
  • -IP65-rated construction and vibration-resistant design for all-weather durability
Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery
Electrical Specifications

Battery Type: Lithium Iron Phosphate

Nominal Voltage: 12.8V

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage Range: 10V to 14.8V

Dimensions: 229 x 138 x 213 mm / 9.02 x 5.43 x 8.39 in

Weight: 21.8 lbs / 9.9 kg

Connection Method: Series & Parallel (4S4P)

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Protection Rating: IP65

Charge Temperature Range: 32°F to 122°F (0°C to 50°C)

Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)

Terminal Bolt Size: M8 x 1.25 x 12 mm

Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m

Peak Discharge Current: 300A@5s

Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)



Accessories

Long Terminal Bolts (2): 2 x M8 x 1.25 x 15 mm



Warranty

Material and Workmanship Warranty: 5 Years

Certifications: MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
