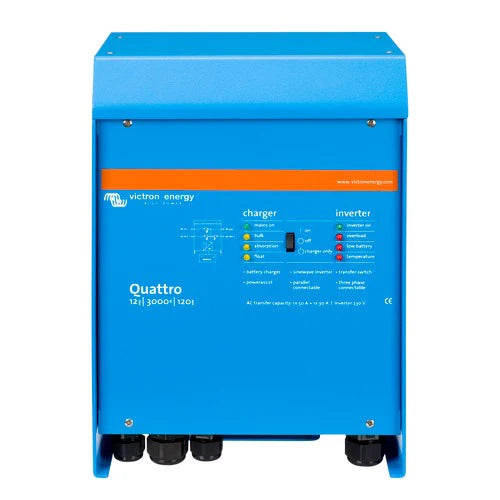

Victron Energy Quattro 12/3000/120-50/50 230V – QUA123020010

The Victron Energy Quattro 12/3000/120-50/50 230V is a highly versatile inverter/charger designed for off-grid and backup power systems. This unit combines an inverter and a charger in one, capable of delivering a continuous power output of 3000VA (2400W) and a peak power output of 6000W, making it suitable for a wide range of applications. The Quattro can be connected to two independent AC sources, such as the public grid and a generator, and will automatically connect to the active source. It operates with a nominal voltage of 12V DC, and the integrated battery charger offers a charging current of up to 120A, ensuring rapid and efficient battery recharging.

A notable feature of the Victron Quattro 12/3000/120-50/50 is its PowerAssist technology, which allows it to supplement the capacity of the alternative power source, thereby preventing overloads. This technology is particularly beneficial during periods of peak power demand, as it temporarily utilizes power stored in the batteries to support the connected loads. The unit also boasts advanced monitoring and control capabilities via the VE.Bus system, enabling remote configuration and real-time monitoring through various interfaces and devices. Additionally, the Quattro is equipped with multiple programmable relays, an auxiliary output, and a range of safety features, including overload protection, temperature protection, and low battery voltage shutdown, ensuring reliable and safe operation in various environments.

• Manufacturer - Victron Energy
• Voltage - 12V
• Commodity Code - 85044085
• Dimensions (mm) (H x W x D) - 362 x 258 x 218
• Grid Voltage - 230V
